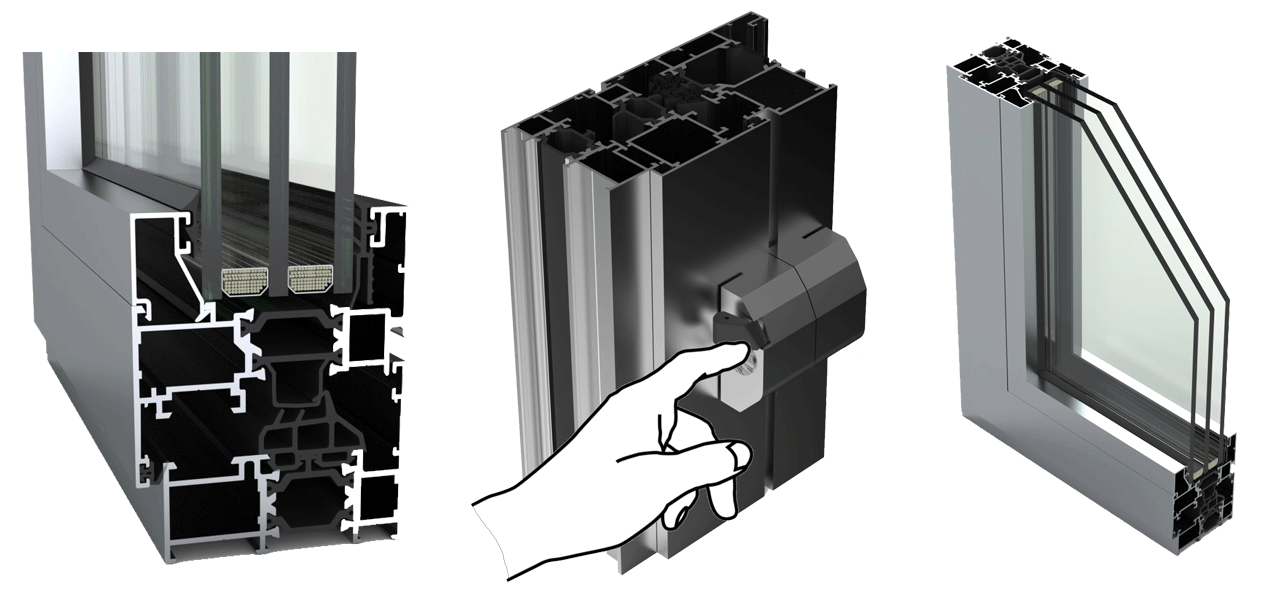

Three-chamber practicable carpentry with thermal break for doors and windows; Designed with a frame section of 65 mm, high thermal and acoustic insulation performance is combined in a profile of marked robustness.
Frame and leaf with depth of 65 and 72 mm respectively and European Channel.
This channel allows all types of openings such as interior or exterior practicable, folding, tilt-and-turn, exterior projecting, parallel tilt or folding.
CHIC visible and hidden hinge hardware systems, allows the casement and tilt-and-turn systems a total opening of the window of 180º, three-dimensional and micrometric adjustment in all directions independent of each other, guaranteeing a maximum load capacity per tilt-and-turn sash of 150 kg.
The ALG system allows the possibility of increasing its thermal performance, by inserting insulating profiles in the polyamide chambers, in the rebate of the glass and on the outside of the frame, thus converting it into ALG 65 OPTIMA HQ (High Quality ) .
Possibility of different finishes:
-
Bicolor
-
Lacquered Color (RAL, mottled and rough)
-
Sublichrome Lacquered Wood
-
EZY® Wood Lacquer
-
Antibacterial Lacquer
-
Anodized
Characteristics
-
Practical carpentry with European chamber
-
Frame section: 65mm
-
Blade section: 72 mm
-
Thermal bridge break with:
-
24 mm polyamide in frames
-
27 and 27 mm polyamide in sheets
-
-
Central gasket in EPDM foam
-
Practical opening. Maximum weight per leaf: 120 Kg
-
Tilt-and-turn opening. Maximum weight per leaf: 130 Kg
-
Hidden Tilt-Turn Opening. Maximum weight per leaf: 150 Kg
-
Minimum measurements per sheet:
-
450mm in width
-
550mm high
-
-
Maximum measurements per sheet:
-
1700mm in width
-
2800 mm high
-
-
Maximum glazing up to 43 mm
-
Interior opening possibilities:
-
Practicable
-
Tilt & Turn
-
folding
-
Parallel Oscillation
-
Folding
-
-
Exterior opening possibilities:
-
Practicable
-
Projector
-
