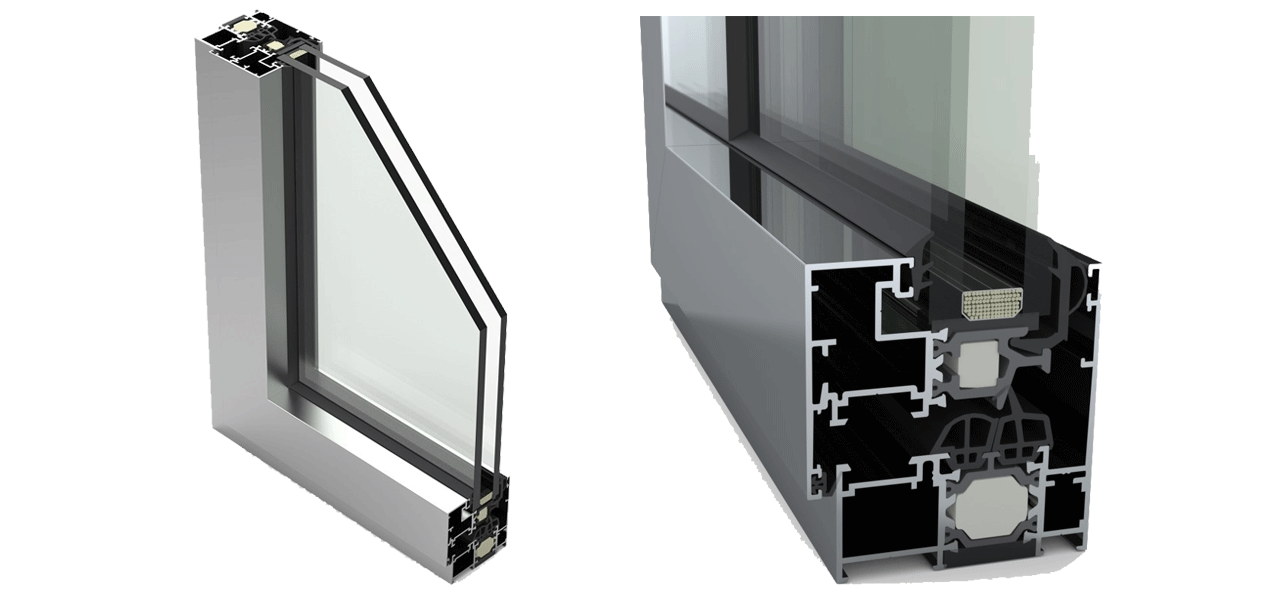

The HS System or hidden sash, is a benchmark in aesthetics for windows with thermal break, with a view from the outside of the smooth frame profile of only 73 mm or frame with a footprint of 70 mm. System without bead, the sash itself collects the glazing, an innovative solution.
Frame and leaf with depth of 65 and 59.5 mm respectively and European Channel.
This channel allows all types of openings such as interior or exterior practicability, folding or tilt-and-turn.
CHIC visible and hidden hinge hardware systems, allows the casement and tilt-and-turn systems a total opening of the window of 180º, three-dimensional and micrometric adjustment in all directions independent of each other, guaranteeing a maximum load capacity per tilt-and-turn sash of 150 kg.
The ALG system allows the possibility of increasing its thermal performance, by inserting insulating profiles in the polyamide chambers, in the rebate of the glass and on the outside of the frame, thus converting it into ALG 65 OPTIMA HS HQ ( High Quality) .
Possibility of different finishes:
-
Bicolor
-
Lacquered Color (RAL, mottled and rough)
-
Sublichrome Lacquered Wood
-
EZY® Wood Lacquer
-
Antibacterial Lacquer
-
Anodized
Characteristics
-
Practical carpentry with European chamber
-
Frame section: 65mm
-
Blade section: 59.5 mm
-
Thermal bridge break with
-
24 mm polyamide in frames
-
29.5 mm polyamide in sheets
-
-
Central gasket in EPDM foam
-
Practical opening. Maximum weight per leaf: 120 Kg
-
Tilt-and-turn opening. Maximum weight per leaf: 130 Kg
-
Hidden Tilt-Turn Opening. Maximum weight per leaf: 150 Kg
-
Minimum measurements per sheet:
-
470mm in width
-
650mm high
-
-
Maximum measurements per sheet:
-
1550mm in width
-
1750 mm high
-
-
Maximum glazing up to 43 mm in frames
-
Maximum glazing up to 28 mm in sheets
-
Interior opening possibilities:
-
Practicable
-
Tilt & Turn
-
folding
-
